SY® Desorber

Application

• steel mill
  paper plant- big hydraulic system continuous water ingress- water oil recycle, etcSY R desorber technical advantage:- Oil viscosity range: ISO VG 32-1000such as oil viscosity and water content in the oil- Continuous distill water can be achieved.
  The ol temperature can be controled between 20-80 °C to distil water, and the distlltemperature is selected based on indicators
• Low energy consumption, with a minimum power consumption of only 15.4 kW.
  The oil content in the extracted water is extremely low, desorber can reduce oil loss during distill water


The water content of lubricating oil can be easily reduced to<100ppm (data source: mineral oil and PAO oil)
The distil water speed is extremely fast, which can quickly remove free water from lubricating oil and also emulsiy lubricating oil.
SYR desoreber distill water is not affected by oil additives
Fully automatic control system, no manual duty
pure mode, suitable for various industries and working conditions
The operation mode of the electronic control system can be selected from manual mode, continuous distll water mode, and utra-pure  mode, suitable for various industries and working conditions

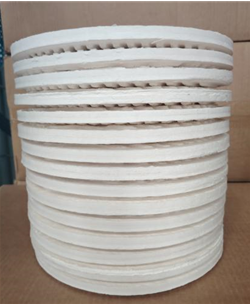

Model: FB 27-27
Material: Cellulose, pure natural renewable filter material
Filtration: up to 1um, high efficiency to retain particle in one pass
3 3um, retain 98.7% in one pass,
3 0.8um, retain 50% in one pass
Dimension: diameter 27cm, height 27cm
Remove dirty type: solid particle, sludge, Varnish, dissolved and suspended dirt, oil oxidation, emulsified water
(Max. 2 liters water)
Filtering prinaiple absorption+adsorption. Oil sludge and large particles are adsorbed on the outer surface ofthe filter element, while small particles are absorbed by the inner surface of the filter element. One fiterelement can achieve multiple filtration accuracy without the need for multiple filtration accuracy in series

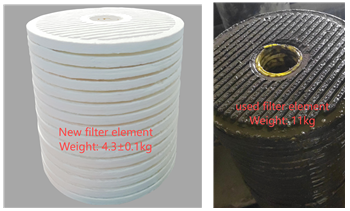

Hold dirt: 4kg / liters, include emulsified water
Applicable oil viscosity range: ISO VG 15-1000
Unlike fiberglass and paper fiter materials cellulose materials have natural polarity, and the contact surfacebetween the filter element and oil is an active magnetic field. With the special processing technology of thefilter element it can fully absorb the Vamish substances in the oil, fiter for a long time, and control the agingdegradation products of varnish in the oil to the lowest level, thereby slowing down the oil aging rate and
extending the oil life

Physical oil filtration, combine with particle, vamish and water, 3 in 1 filtration, provides excellent de coloreffect after filtration. Because no chemical substances are used to de color the oil, the filtered oil hassignificantly optimized indicators and significantly extended oil service lifeThe cellulose filter element has obvious advantages in filtering high viscosity oil technology. with a largecontact area between the filter element and the oil to achieve extremely high pollutant holding capacity. It isfavored by customers in many industries such as cement, mining, steel, paper making, injection molding.
die-casting,quenching, etc

Filter inlet NAS 1638	Filter outlet NAS 1638
12	≦9
9	≦7
7	≦6
6	≦5
5	≦4
4	≦3

Filter inlet water in ppm	Filter outlet water in ppm
2000	≦200
1000	≦200
500	≦200
200	≦100
100	≦100
50	≦50

Inlet NAS 1638	Outlet NAS 1638
12	≦9
9	≦7
7	≦6
6	≦5
5	≦4
4	≦3

SY ® oil filter can filter out:

- dust particles

- wear particles

- bacteria

- sludge

- paint film

- slight emulsified water and other comprehensive oil pollution sources.

Long term fine filtration, the key indicators for oil
change have changed as follows:
TAN value decrease

• PQvalue decrease- Oil viscosity approaches new oil or stops
  deteriorating trend
  The minimum standard for oil change interval has
  been doubledReduce carbon dioxide emissions from waste oil by
  50% or more

SY® filter element material: cellulose，this filter fit for ：

• Small gearbox no continuous water leak
• Small hydraulic system no continuous water leak

SY® filter element

• Model : FB 15-25
• Material ：cellulose, natural recycle material
• Filtration accuracy：up to 1 micron
• Dimension ：diameter15cm, height 25cm
• Filter out dirt include：particle, sludge, oil oxidation, emulsified water (Max. 750ml)

• Hold dirt：1.5kg
• Fit for oil viscosity：ISO VG 5-320
• It’s  engine oil, hydraulic oil, diesel, anti-rust oil, lube oil, mineral oil, semi-synthetic oil and synthetic oil ,etc.

FB 15-25 can filter out fine particle, such as：

• Hard particle：dust, metal wear particle, etc.
• Soft particle：oil oxidation, sludge, varnish, etc.

Inlet NAS 1638	Outlet NAS 1638
12	≦9
9	≦7
7	≦6
6	≦5
5	≦4
4	≦3

Oil pass through filter element one time, water change refer to below：

Inlet ppm	Outlet ppm
2000	≦200
1000	≦200
500	≦200
200	≦100
100	≦100
50	≦50

Filter inlet NAS 1638	Filter outlet NAS 1638
12	≦9
9	≦7
7	≦6
6	≦5
5	≦4
4	≦3

Dirty oil pass through filter element, pass more times  oil is more clean.

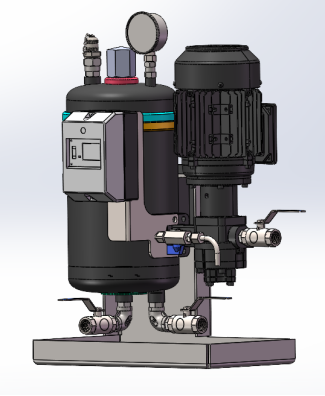

FF 27-series fine filter is customized design, high pressure automatic shutdown and current overload protection are basic configurations.

SY ® oil filter can filter out:

- dust particles

- wear particles

- bacteria

- sludge

- paint film

- slight emulsified water and other comprehensive oil pollution sources.

The more option：

• Variable frequency system/fixed frequency system
• EX system
• Heating system
• Base tank

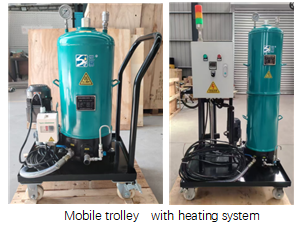

• Mobile trolley
• Drip pan
• High flow design

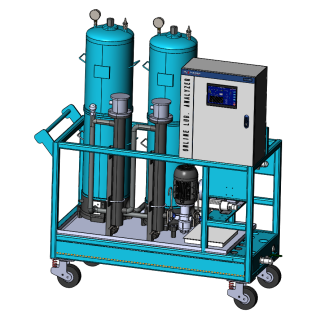

• On line monitor system: particle, water, oil viscosity, temperature, etc.
• Highlight AI bubble algorithm eliminates the influence of foam on the monitoring results, and the viscosity is automatically converted to 40 ℃ kinematic viscosity. The software function is suitable for fixed installation and powerful, not for mobile trolley.

Long term fine filtration, the key indicators for oil change have changed as follows:

- TAN value decrease

- PQ value decrease

- Oil viscosity approaches new oil or stops deteriorating trend

- The minimum standard for oil change interval has been doubled

- Reduce carbon dioxide emissions from waste oil by 50% or more

You will get the more reliable production and reduce unplanned downtime.

We can clean：

• Oil- based cutting fluid
• diesel
• Water glycol
• Engine oil
• Quench oil
• Hydraulic oil
• Lube oil
• Oil viscosity range cover ISO VG 5~1000

Filter element material include：

• Cellulose: one element absorb max. 2 liters water, filtering accuracy up to 1 micron, can filter out varnish, sludge, oil oxidation, and fine particle, one element can filter out 4liters dirt.
• Glass fiber+composite filter paper: use for water glycol or oil polluted by water, 1 micron, 3 microns, 5 microns, and 10 microns are all for sale. One element can filter out 2kg dirt.

SY® fine filter design advantage:

• One filter can fit different element to clean various fluid.
• Every filter install 2 oil sampling point, you can take oil sample from both filter inlet and outlet.
• We can customize and design your ideal fine filtration system
